Integrating AI Assistants into Shiny Apps

Simplify Development and Enhance User Experience

James Wade

AI Coding Assistants

chattr

gptstudio

Github Copilot

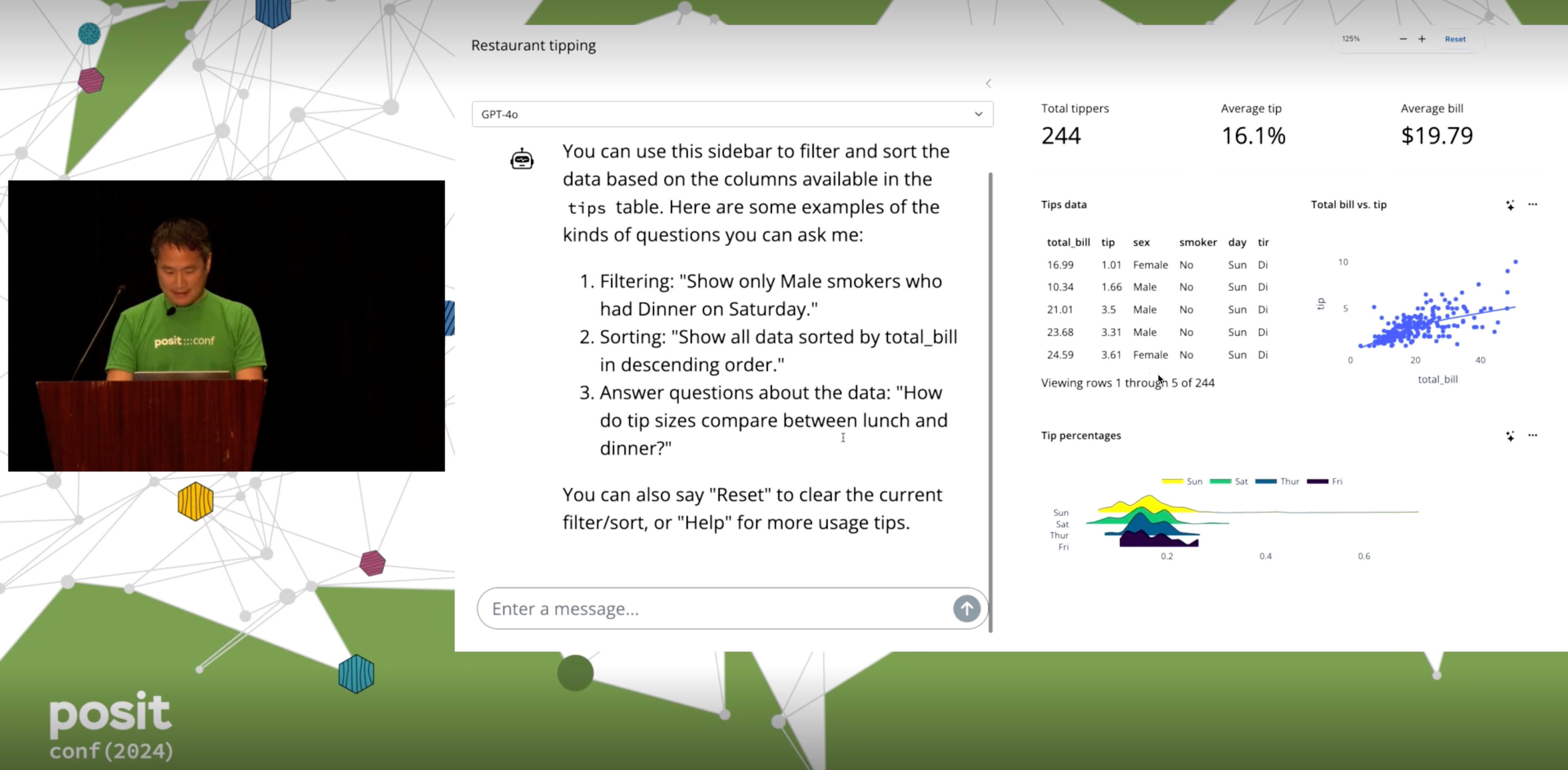

Sidebots

Joe Cheng’s talk “Shiny x AI” at posit::conf(2024)

You just saw some awesome AI examples from Joe

Joe’s talk a few hours ago

New Tools for LLMs from Posit

• elmer
  • Basic API calls across many service
  • Multimodal chats: text + images
  • Tool calling
  • Structured output
• shinychat
  • Simple app demo
  • Fancier app demo (sidebots!)

Let’s take a few minutes to dive in

Advice from Joe

Being a mere consumer of Copilot and ChatGPT is not enough to have a well-informed opinion of the potential of LLMs (you will miss out on structured output and tool calls).

Start coding!

Advice from Joe

Stochastic Parrot

Advice from Joe

Stochastic Parrot

vs

Machines that Reason

Let’s (almost) Build a Chatbot

Let’s (almost) Build a Chatbot

library(shiny)
library(bslib)
library(shinychat) # pak::pak("jcheng5/shinychat")

ui <- page_fluid(
  chat_ui("chat")
)

server <- function(input, output, session) {
  greeting <- "Hello there. Let's chat!"
  chat_append("chat", greeting)
  observeEvent(input$chat_user_input, {
    chat_append("chat", paste0("You said: ", input$chat_user_input))
  })
}

shinyApp(ui, server)

Meet elmer

library(elmer)                # pak::pak("hadley/elmer")
chat <- chat_openai()         # requires api key

Meet elmer

library(elmer)                # pak::pak("hadley/elmer")
chat <- chat_openai()         # requires api key
chat$chat("Hello there")
#> Hi there! How can I assist you today?

Meet elmer

library(elmer)                # pak::pak("hadley/elmer")
chat <- chat_openai()         # requires api key
chat$chat("Hello there")
#> Hi there! How can I assist you today?
chat$chat("Tell me a pithy coding joke.")
#> Why do programmers prefer dark mode? Because light attracts bugs!

Meet elmer

library(elmer)                # pak::pak("hadley/elmer")
chat <- chat_openai()         # requires api key
chat$chat("Hello there")
#> Hi there! How can I assist you today?
chat$chat("Tell me a pithy coding joke.")
#> Why do programmers prefer dark mode? Because light attracts bugs!

# and now with claude
chat <- chat_claude()         # requires api key

Meet elmer

library(elmer)                # pak::pak("hadley/elmer")
chat <- chat_openai()         # requires api key
chat$chat("Hello there")
#> Hi there! How can I assist you today?
chat$chat("Tell me a pithy coding joke.")
#> Why do programmers prefer dark mode? Because light attracts bugs!

# and now with claude
chat <- chat_claude()         # requires api key
chat$chat("Please solve all my shiny app problems")
#> Of course! I'd be happy to help with any issues with your...

More fun with elmer

We can easily pass images.

library(elmer)
chat <- chat_openai(model = "gpt-4o", echo = TRUE)
img <- "https://github.com/hadley/elmer/raw/main/man/figures/logo.png"
chat$chat("What am I looking at?",
          content_image_url(img))

More fun with elmer

We can easily pass images.

library(elmer)
chat <- chat_openai(model = "gpt-4o", echo = TRUE)
img <- "https://github.com/hadley/elmer/raw/main/man/figures/logo.png"
chat$chat("What am I looking at?",
          content_image_url(img))
#> This is an illustration featuring Elmer the Patchwork
#> Elephant. Elmer is known for his colorful, patchwork
#> appearance, and the image showcases a cheerful,
#> multicolored design typical of the Elmer series of
#> children's books by David McKee.

More fun with elmer

We can easily pass images.

library(elmer)
chat <- chat_openai(model = "gpt-4o", echo = TRUE)
img <- "https://github.com/hadley/elmer/raw/main/man/figures/logo.png"
chat$chat("What am I looking at?",
          content_image_url(img))
#> This is an illustration featuring Elmer the Patchwork
#> Elephant. Elmer is known for his colorful, patchwork
#> appearance, and the image showcases a cheerful,
#> multicolored design typical of the Elmer series of
#> children's books by David McKee.

And ask follow up questions…

chat$chat("In one sentence, does this make sense as a hex sticker for an R
package for LLM APIs?")
#> Yes, it makes sense if the package emphasizes creativity,
#> diversity, or colorful data representation, drawing a
#> parallel with Elmer's vibrant and patchwork theme.

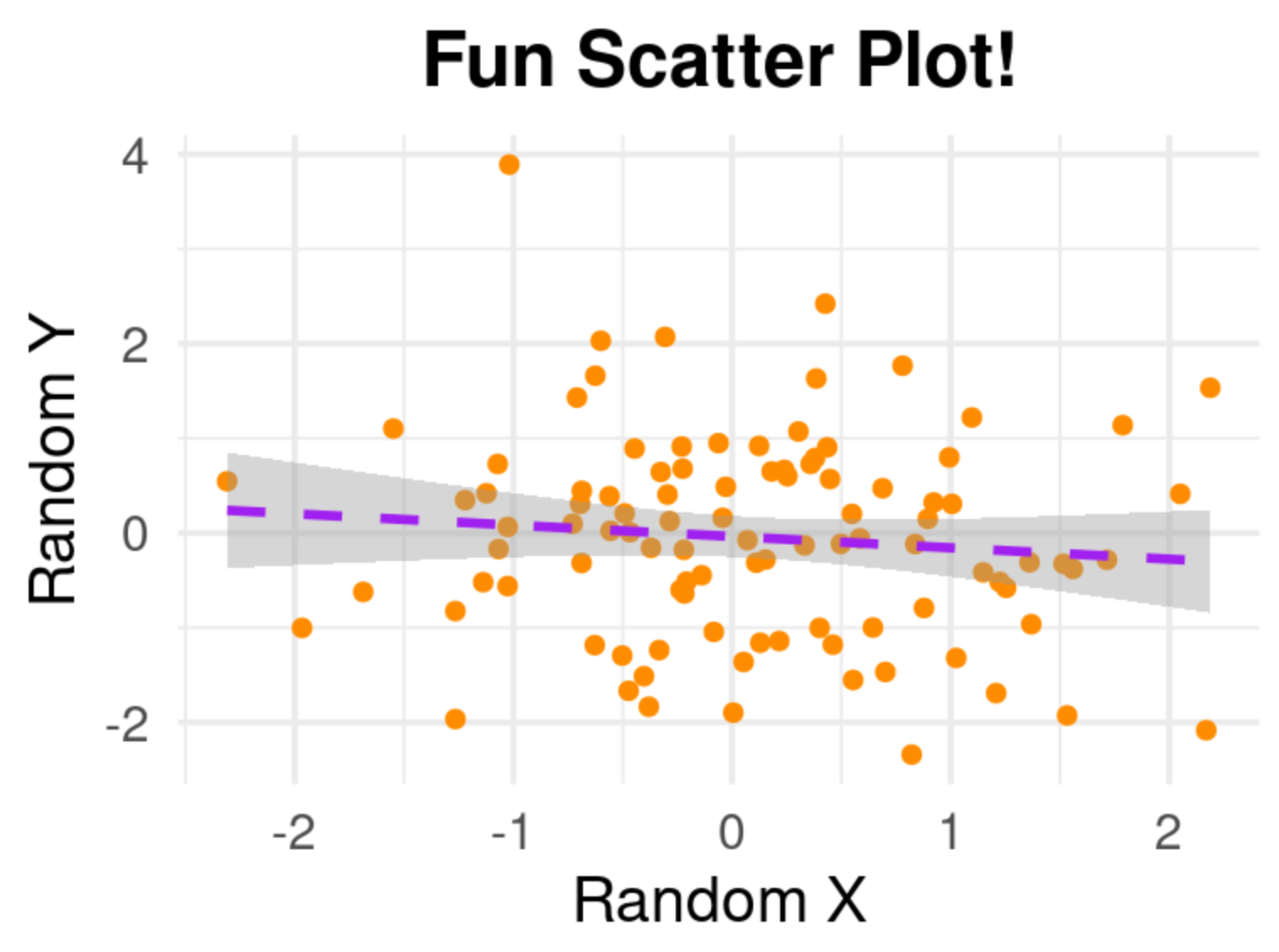

You can pass plots to elmer too

chat$chat("In a few words, interpret this plot", content_image_plot())
#> No significant trend; random distribution around the mean.

Let’s Build (an actual) Chatbot

library(shiny)

ui <- bslib::page_fluid(
  shinychat::chat_ui("chat")
)

server <- function(input, output, session) {
  chat <- elmer::chat_openai(
    model = "gpt-4o-mini",
    system_prompt = "You are a pithy, but helpful assistant."
  )
  observeEvent(input$chat_user_input, {
    stream <- chat$stream_async(input$chat_user_input)
    shinychat::chat_append("chat", stream)
  })
}

shinyApp(ui, server)

But let’s remember Joe’s advice…

Being a mere consumer of Copilot and ChatGPT is not enough to have a well-ifcormed opinion of the potential of LLMs (you will miss out on structured output and tool calls).

Start coding!

Tool Calling

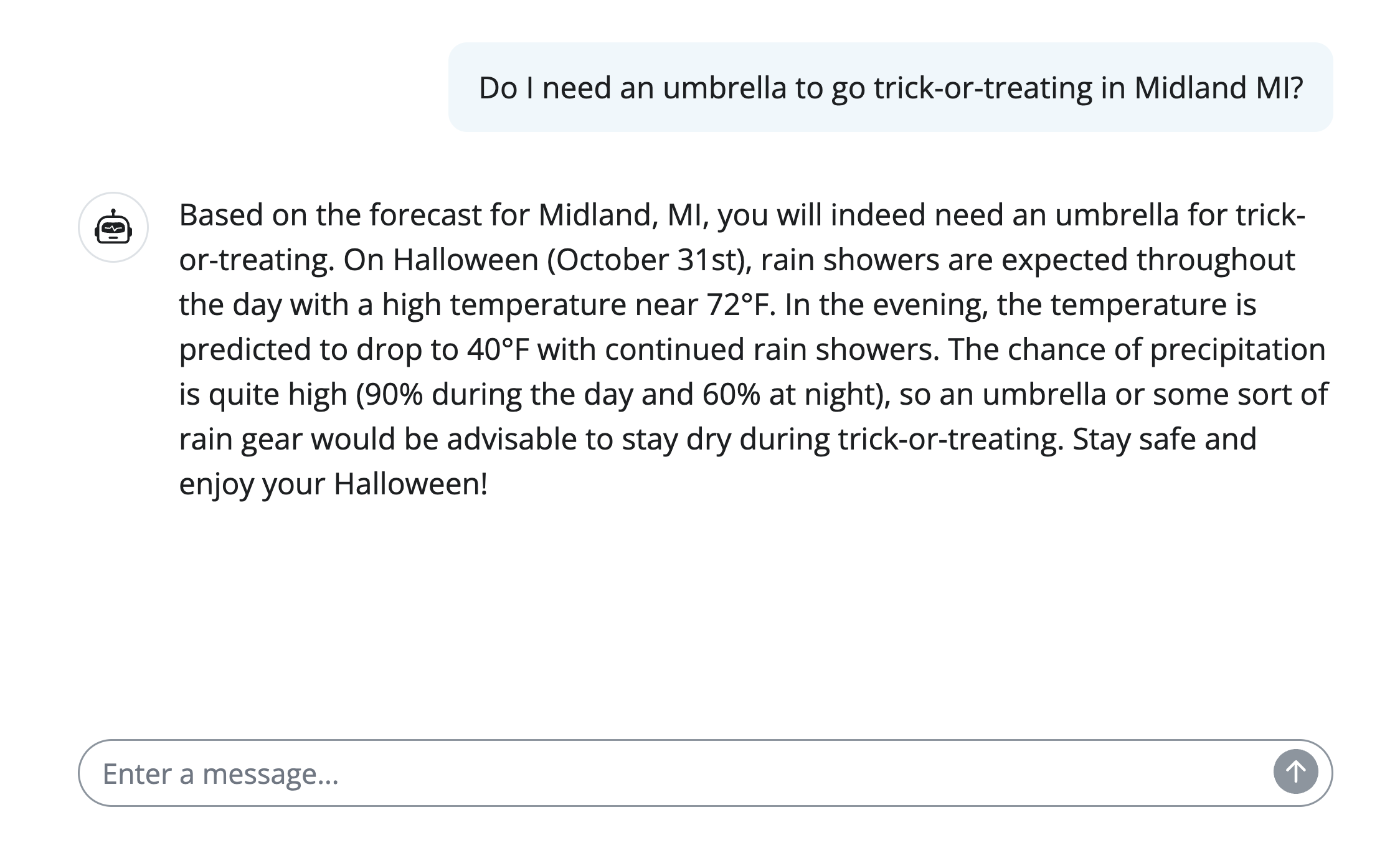

An example with the weather:

# simple chat interface
elmer::live_browser(chat)

To use a tool, register it first

• Register Tool
• Tool

chat$register_tool(
  tool(
  .fun = get_forecast,
  .description = "Gets 7-day weather forecast for a city",
  # typed arguments
  city = type_string("The name of the city"),
  state = type_string("State name or abbreviation (required)")
  )
)

Types: type_string(), type_integer(), type_number(), type_boolean(), type_array(), type_object(), type_enum()

get_forecast <- function(city, state) {
  coords <- get_coordinates(city, state)
  station <- get_nearest_station(coords$lat, coords$lon)

  response <- request(station$forecast_url) |>
    req_headers("Accept" = "application/json", "User-Agent" = "R Weather App (contact@example.com)") |>
    req_perform() |>
    resp_body_json()

  map(response$properties$periods, ~ {
    temp <- as.numeric(gsub("[^0-9.-]", "", .x$temperature))
    list(
      location = coords$location,
      coordinates = list(lat = coords$lat, lon = coords$lon),
      date = .x$startTime,
      name = .x$name,
      temp = temp,
      conditions = .x$shortForecast,
      detailed_forecast = .x$detailedForecast
    )
  })
}

Structured Output

The model will adhere to a defined schema or structure

… which means …

structured output makes LLMs programmable!

Stucture Output - An Example

chat <- chat_openai(model = "gpt-4o", echo = FALSE, seed = 1234)
bio_spec <- type_object(
  "Person",
  name = type_string("Name of the person"),
  profession = type_string("Profession"),
  interests = type_string("Interests"),
  favorite_pkg = type_string("Favorite R package, say 'Unknown' if none")
)

Stucture Output - An Example

chat <- chat_openai(model = "gpt-4o", echo = FALSE, seed = 1234)
bio_spec <- type_object(
  "Person",
  name = type_string("Name of the person"),
  profession = type_string("Profession"),
  interests = type_string("Interests"),
  favorite_pkg = type_string("Favorite R package, say 'Unknown' if none")
)
joe <- chat$extract_data(bio_joe, spec = bio_spec)

Stucture Output - An Example

chat <- chat_openai(model = "gpt-4o", echo = FALSE, seed = 1234)
bio_spec <- type_object(
  "Person",
  name = type_string("Name of the person"),
  profession = type_string("Profession"),
  interests = type_string("Interests"),
  favorite_pkg = type_string("Favorite R package, say 'Unknown' if none")
)
joe <- chat$extract_data(bio_joe, spec = bio_spec)
joe

$name
[1] "Joe Cheng"

$profession
[1] "Chief Technology Officer at Posit"

$interests
[1] "R programming, web development, cycling, family"

$favorite_pkg
[1] "Shiny"

Stucture Output - An Example

chat <- chat_openai(model = "gpt-4o", echo = FALSE, seed = 1234)
bio_spec <- type_object(
  "Person",
  name = type_string("Name of the person"),
  profession = type_string("Profession"),
  interests = type_string("Interests"),
  favorite_pkg = type_string("Favorite R package, say 'Unknown' if none")
)

bind_rows(
  chat$extract_data(bio_joe, spec = bio_spec) |> as_tibble(),  # joe's bio
  chat$extract_data(bio_james, spec = bio_spec) |> as_tibble() # my bio
) |>
  gt() |>
  opt_stylize(style = 3)

name	profession	interests	favorite_pkg
Joe Cheng	Chief Technology Officer at Posit	R programming, web development, cycling, family	Shiny
James Wade	Research Scientist	Data science, chemistry, materials science, machine learning, data visualization, open-source contributions	Unknown

Structured Output

LLMs are fantastic at converting unstructured text to structured data.

Structured Output

• Code
• Result
• Schema
• Schema - Code

chat <- chat_openai(model = "gpt-4o")             # create chat object

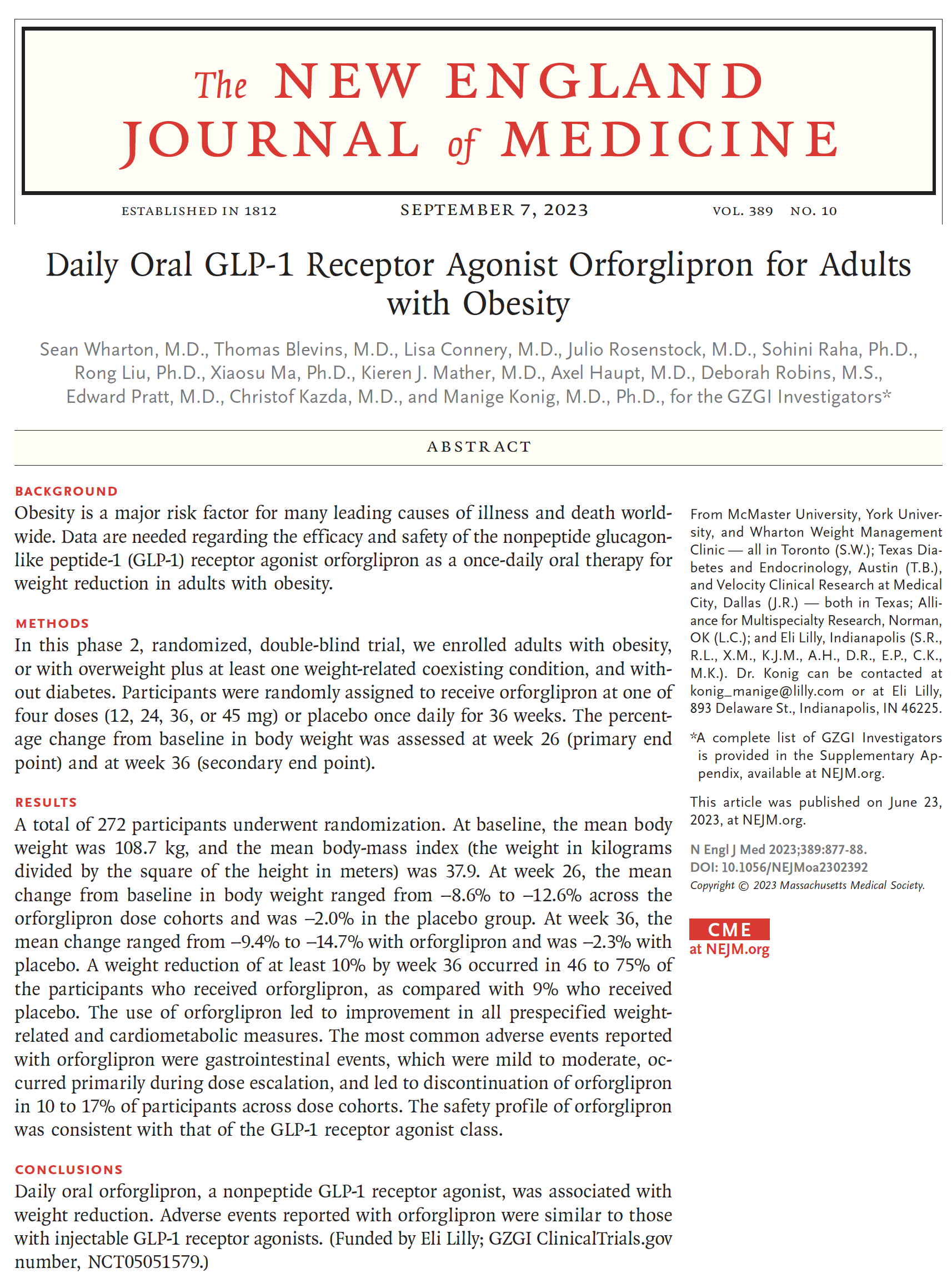

text <- read_pdf(file_path = "NEJMoa2302392.pdf") # extrace text from pdf
extracted_data <- chat$extract_data(              # extra_data call
  text,
  spec = study_info_spec                          # pass custom spec
)
extracted_tbl <- studies_to_table(extracted_data) # convert to table

name	value
title	Daily Oral GLP-1 Receptor Agonist Orforglipron for Adults with Obesity
authors	Sean Wharton, M.D.; Thomas Blevins, M.D.; Lisa Connery, M.D.; Julio Rosenstock, M.D.; Sohini Raha, Ph.D.; Rong Liu, Ph.D.; Xiaosu Ma, Ph.D.; Kieren J. Mather, M.D.; Axel Haupt, M.D.; Deborah Robins, M.S.; Edward Pratt, M.D.; Christof Kazda, M.D.; Manige Konig, M.D., Ph.D.
affiliations	McMaster University, York University, and Wharton Weight Management Clinic, Toronto; Texas Diabetes and Endocrinology, Austin; Alliance for Multispecialty Research, Norman, OK; Velocity Clinical Research at Medical City, Dallas; Eli Lilly, Indianapolis
journal	The New England Journal of Medicine
published_date	2023-09-07
condition	Obesity
study_objective	To evaluate the efficacy and safety of the nonpeptide GLP-1 receptor agonist orforglipron as a once-daily oral therapy for weight reduction in adults with obesity.
study_design	Phase 2, randomized, double-blind, placebo-controlled trial.
n_participants	272
inclusion_criteria	Adults with obesity, or with overweight plus at least one weight-related coexisting condition, and without diabetes.
exclusion_criteria	Persons with diabetes and unstable medical conditions.
dosage_groups	12, 24, 36, 45
duration	36 weeks
primary_endpoint	Percentage change from baseline in body weight at week 26.
secondary_endpoints	Percentage change from baseline in body weight at week 36 and other weight-related measures.
exploratory_measures	Weight reduction by percentage and absolute change, changes in BMI and waist circumference.
primary_outcome	The mean change in body weight ranged from -8.6% to -12.6% across orforglipron dose cohorts and was -2.0% in placebo at 26 weeks.
secondary_outcomes	At 36 weeks, weight change ranged from -9.4% to -14.7% with orforglipron, and -2.3% with placebo.
safety_events	Gastrointestinal events were common but mild to moderate, leading to discontinuation in 10 to 17% of participants across dose cohorts.
efficacy_comparison	Orforglipron demonstrated weight reduction efficacy similar to injectable GLP-1 receptor agonists.
safety_profile	The safety and adverse event profile was consistent with the GLP-1 receptor agonist class.
implications	Orforglipron offers an oral alternative to injectable treatments for obesity, with comparable efficacy results.

study_info_spec/
├── title (string)
├── authors [array]
│   └── items
│       ├── name (string)
│       └── affiliation (string)
├── published_date (string)
├── journal (string)
├── condition_addressed (string)
├── study_objective (string)
├── study_design (string)
├── participants/
│   ├── number (number)
│   ├── inclusion_criteria (string)
│   └── exclusion_criteria (string)
├── intervention/
│   ├── dosage_groups [array<number>]
│   └── duration (string)
├── outcome_measures/
│   ├── primary_endpoint (string)
│   ├── secondary_endpoints (string)
│   └── exploratory_measures (string)
├── results/
│   ├── primary_outcome (string)
│   ├── secondary_outcomes (string)
│   └── safety_and_adverse_events (string)
└── discussion/
├── efficacy_comparison (string)
├── safety_profile (string)
└── implications (string)

study_info_spec <- type_object(
  "Information about a medical research study",
  # Basic study information
  title = type_string("The title of the study."),
  authors = type_array(
    "List of authors with names and affiliations.",
    items = type_object(
      name = type_string("Name of the author."),
      affiliation = type_string("Affiliation of the author.")
    )
  ),
  published_date = type_string("The date the study was published."),
  journal = type_string("The journal in which the study is published."),
  condition_addressed = type_string("The medical condition that is being addressed in the study."),
  study_objective = type_string("The objective of the study."),
  study_design = type_string("The design of the study."),

  # Participant information
  participants = type_object(
    "Details about study participants including criteria.",
    number = type_number("Number of participants in the study."),
    inclusion_criteria = type_string("Inclusion criteria for participants."),
    exclusion_criteria = type_string("Exclusion criteria for participants.")
  ),

  # Intervention details
  intervention = type_object(
    "Details about the interventions conducted in the study.",
    dosage_groups = type_array(
      "Dosage groups for the intervention.",
      items = type_number()
    ),
    duration = type_string("Duration of the study intervention.")
  ),

  # Outcome measures
  outcome_measures = type_object(
    "Details about the outcome measures used in the study.",
    primary_endpoint = type_string("Primary outcome measurement."),
    secondary_endpoints = type_string("Secondary outcome measurements."),
    exploratory_measures = type_string("Exploratory outcome measurements.")
  ),

  # Results
  results = type_object(
    "Results of the study.",
    primary_outcome = type_string("Primary outcome of the study."),
    secondary_outcomes = type_string("Secondary outcomes of the study."),
    safety_and_adverse_events = type_string("Overview of safety and adverse events.")
  ),

  # Discussion
  discussion = type_object(
    "Discussion and conclusions of the study.",
    efficacy_comparison = type_string("Comparison of efficacy with other treatments."),
    safety_profile = type_string("Safety profile comparison."),
    implications = type_string("Implications of the study findings.")
  )
)

Sidebots - Why are they so useful?
